Description
Description
LC-D series of diffusion pump oils have a narrow molecular weight range,limited viscosity and extremely low vapor pressure.
Features & Benefits
Package
LC-D series of diffusion pump oils have a narrow molecular weight range,limited viscosity and extremely low vapor pressure.
Features & Benefits
- When exposed to oxygen,ionizing radiation or being impacted by accelerated subatomic particles,no polymerization will occur.
- When the oil is decomposed,the system will not be immersed and leave no sediment,non-combustibility,no oxidation,accidents will occur.
- When the diffusion pump is working ,the hot oil can be exposed to the air many times without harmful effects on the oil.
- It can be used in diffusion pumps without any adjustments to the pump.
- It can be used in systems that require high vacuum,such as mass spectrometers,scanning electron and transmission microscopes,particle accelerators,plasma and vapor
- deposition systems.
|
Property |
180D8 |
250D9 |
400D11 |
1400D13 |
|
Average molecular weight a.m.u. |
2800 |
3400 |
4400 |
7600 |
|
Density 20 ℃ g/cm3 |
1.89 |
1.9 |
1.91 |
1.92 |
|
Viscosity 20 ℃ cSt |
185 |
285 |
474 |
1400 |
|
Viscosity 40 ℃ cSt |
57 |
78 |
140 |
398 |
|
Pour point ℃ |
-45 |
-41 |
-38 |
-30 |
|
Refractive index (n20D) |
1.300 |
1.301 |
1.304 |
1.304 |
|
Specific heat 20 ℃ cal/g |
0.24 |
0.24 |
0.24 |
0.24 |
|
Heat of vaporization 200℃ cal/g |
9 |
7 |
7 |
5 |

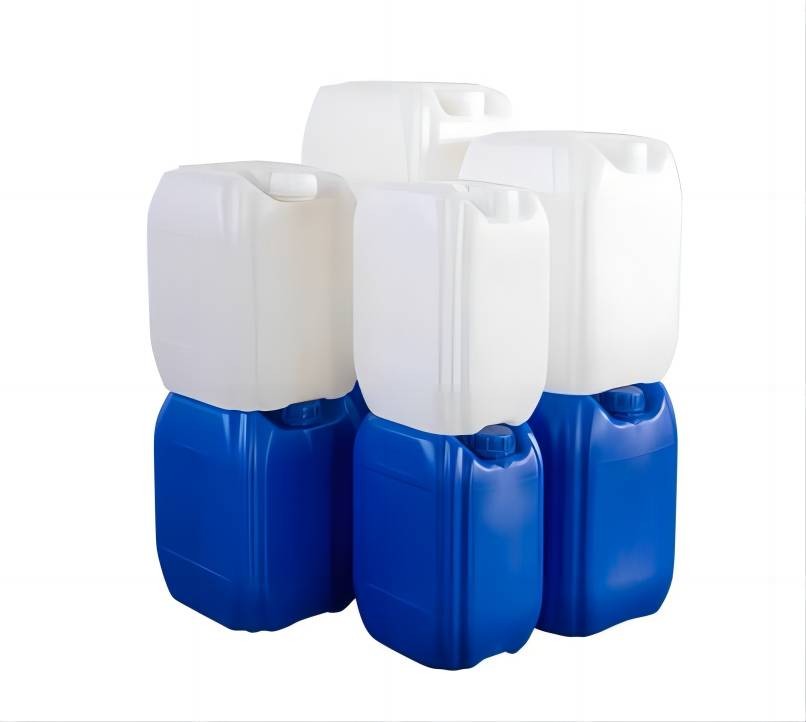

- 1KG or 5KG plastic barrel
